| Key Feature | |
|---|---|
|
Needle |
| - | Direct Drive |
|
Hook |
|
Press |
|
Feeding system |
| - | Stitch |
| - | Needle work |
|
Trimming |
|
Operation panel |
| - | Shape |

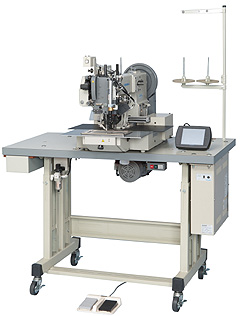

| Model | PLK-G2008H | |
|---|---|---|
| Stitch Type | Single needle,lockstitch | |
| Sewing Area | (X)200mm ,(Y)80mm | |
| Max. Sewing Speed | 700rpm | |
| Sewing speed selection | 200 - 700rpm (10 steps variable) | |
| Feeding system | Intermittent | |
| Stitch length | 0.1 - 20.0mm (minimum resolution 0.1mm) | |
| Thread trimming method | Heat cut method | |
| Memory media | Memory built into control box and USB memory | |
| Max. stitches | 20,000 /pattern | |
| Zoom/reduce function | 10 to 200% for both X and Y axes (variable in 0.1% steps) | |
| Needle | Schmetz794#230 | |
| Hook | Barrel shuttle hook | |
| Needle bar stroke | 56.3mm | |
| Work holder lift amount | 20mm | |
| Presser foot lift amount | 25mm | |
| Presser foot drive | Pneumatic | |
| Mass | LIMISERVO X 550W | |
| Power supply | Single phase 100VAC 50/60Hz 0.7KVA with single-phase power supply unit | Three-phase 200VAC 50/60Hz 0.7KVA |
| External dimensions | W 1,200mm x D 780mm x H 1,320mm | |
| Mass | 130 kg | |
| Application | ||
