Mitsubishi

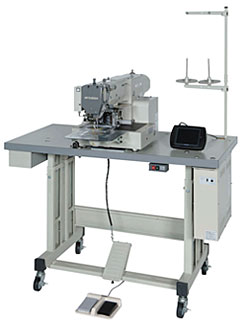

PLK-G1010

Compact Type Pattern Sewing Machine
(Large size shuttle hook type)

Key Feature
Needle
Direct Drive
Hook
Press
Feeding system
- Stitch
- Needle work
Trimming
Operation panel
- Shape
Model PLK-G1010
Stitch Type Single needle,lockstitch
Sewing Area 100mm×100mm
Max. Sewing Speed 2,800rpm *1
Sewing speed selection 200 - 2,800rpm (10 steps variable)
Feeding system Intermittent or continuous
Stitch length 0.1 - 20.0mm (minimum resolution 0.1mm)
Pattern data storage media USB flash memory (not included with sewing machine)
USB-connected FDD can also be connected
Max. number of stitches 20,000 stitches/pattern
Max. patterns 900 *2
Scale-up/down function 10 to 200% for both X and Y axes variable in 0.1% steps
Needle DP×17#18 (Standard)
Hook Large size Shuttle hook
Presser foot drive Magnetic
Mass 133 kg
Application
Note: *1Sewing speed may be limited by the operation, material or champ mass.
Note: *2The max. patterns may be limited depends on number of stitches of each pattern in the memory.
